BAC blancher/cooler

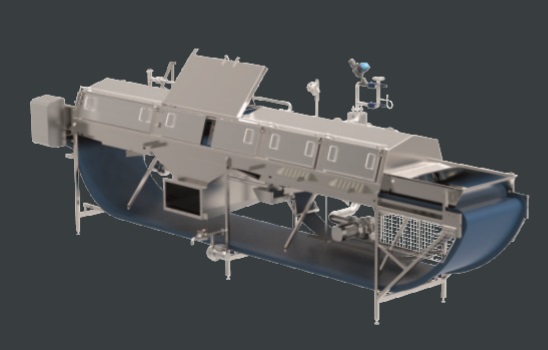

The Cabinplant BAC blancher/cooler is a specially designed, compact blancher for middle production capacities.
Charakteristika
kapacita
from 2 to 9 t/h
aplikace
All kinds of vegetables, excl. leafy products, e.g. spinach
Výrobce stroje
Cabinplant A/S
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
The BAC blancher/cooler is a specially designed, compact blancher for midlle capacities ranging from 2 to 9 t/h. The basic version consists of:
- An infeed section through which product is fed and distributed on the blanching belt.
- A blanching section in which product heating takes place by spraying product with re-circulated water.
- An air cooling section where the product is cooled by air.
- An RSW cooling section where the product is cooled by recirculated ice water
Capacity: from 2 to 9 t/h
Main features:
- Integrated blancher and cooler
- High degree of flexibility in blanching time and temperature
- Low risk of product contamination
- No product damage
- High yield
- Uniform blanching
- Low water consumption
- Custom-made design
- Hygienic design
- Low product discharge temperature
Technická data
| Dimensions (Length x Height x Belt width) | |
| BC 2 | 5.000 x 2.600 x 1.000 mm |
| BC 3 | 6.500 x 2.600 x 1.000 mm |
| BC 4 | 8.000 x 2.600 x 1.000 mm |
| BC 6 | 8.000 x 2.600 x 1.500 mm |
| BC 9 | 11.000 x 2.600 x 1.500 mm |
| Capacity | green peas | BC 2 | BC 3 | BC 4 | BC 6 | BC 9 |
| Nominal capacity | kg/h | 2.000 | 3.000 | 4.000 | 6.000 | 9.000 |
| Steam consumption | max. kg/h | 450 | 625 | 800 | 1.100 | 1.600 |
| Water consumption* | max. m3/h | 0 - 2 | 0 - 2,5 | 0 - 3 | 0 - 3,5 | 0 - 4 |
| Nominal power | kW | 12,5 | 15 | 18 | 25 | 30 |
* Product discharge temperature is approximately +10°C higher than cooling water temperature.
Aplikace
All kinds of vegetables, excl. leafy products, e.g. spinach
