BC blancher/cooler

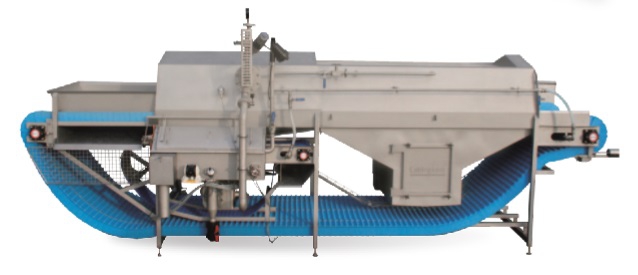

The Cabinplant BC blancher/cooler is a specially designed, compact blancher for small production capacities.
Charakteristika
kapacita
from 1 to 9 t/h
aplikace
Any vegetables, any root vegetables, rice
Výrobce stroje
Cabinplant A/S
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
The BC blancher/cooler is a specially designed, compact blancher for small capacities ranging from 1 to 9 t/h. The basic version consists of:
- An infeed section through which product is fed and distributed on the blanching belt.
- A blanching section in which product heating takes place by spraying product with re-circulated water.
- A cooling section in which cooling water is pumped in counter-flow to the product
Capacity: from 1 to 9 t/h
Main features:
- Integrated blancher and cooler
- High degree of flexibility in blanching time and temperature
- Low risk of product contamination
- No product damage
- High yield
- Uniform blanching
- Low water consumption
- Custom-made design
- Hygienic design
Technická data
| Dimensions (Length x Height x Belt width) | |
| BC 2 | 4.300 x 2.600 x 1.000 mm |
| BC 3 | 5.800 x 2.600 x 1.000 mm |
| BC 4 | 7.300 x 2.600 x 1.000 mm |
| BC 6 | 7.300 x 2.600 x 1.500 mm |
| BC 9 | 10.300 x 2.600 x 1.500 mm |
| Capacity | green peas | BC 2 | BC 3 | BC 4 | BC 6 | BC 9 |
| Nominal capacity | kg/h | 2.000 | 3.000 | 4.000 | 6.000 | 9.000 |
| Steam consumption | max. kg/h | 450 | 625 | 800 | 1.100 | 1.600 |
| Water consumption* | max. m3/h | 6 | 7,5 | 9 | 13 | 20 |
| Nominal power | kW | 4 | 6 | 7 | 8 | 12 |
* Product discharge temperature is approximately +10°C higher than cooling water temperature
Aplikace
Any vegetables, any root vegetables, rice
Poptávkový formulář
Fotogalerie
