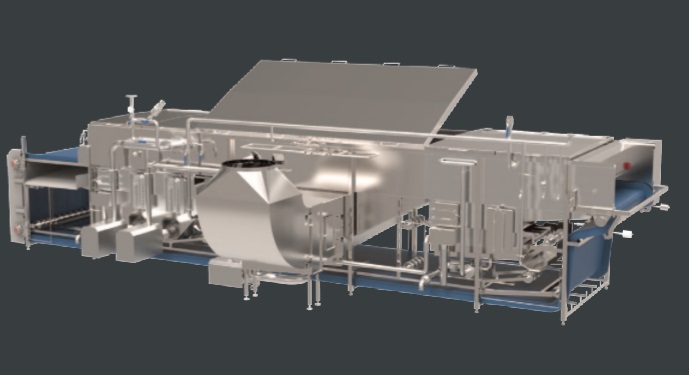

IBC – BAC blancher/cooler
The Cabinplant IBC – BAC blancher/cooler is a specially designed, compact blancher for large production capacities.
Charakteristika
kapacita
from 8 to 20 t/h
aplikace
All kinds of vegetables, excl. leafy products, e.g. spinach
Výrobce stroje
Cabinplant A/S
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
The IBC – BAC blancher/cooler is a specially designed, compact blancher for large capacities ranging from 8 to 20 t/h. The basic version consists of:
- An infeed section through which product is fed and distributed on the blanching belt.
- A blanching section in which product heating takes place by spraying product with re-circulated steam-heated water.
- An air cooling section where the product is cooled by air (product discharge temperature of approx. 30°C.)
Capacity: from 8 to 20 t/h
Main features:
- Integrated blancher and cooler
- High degree of flexibility in blanching time and temperature
- Low risk of product contamination
- No product damage
- High yield
- Uniform blanching
- Low water consumption
- Custom-made design
- Hygienic design
Option:
- Extension by a chilled water cooling section (RSW) using re-circulated water (product discharge temperature of approx. 10°C.)
Technická data
| Dimensions (Length x Height x Belt width) | |
| BC 8 | 8.500 x 2.900 x 1.900 mm |
| BC 10 | 10.000 x 2.900 x 1.900 mm |
| BC 12 | 11.500 x 2.900 x 1.900 mm |
| BC 16 | 14.500 x 2.900 x 1.900 mm |
| BC 20 | 17.500 x 2.900 x 1.900 mm |
| Capacity | green peas | BC 8 | BC 10 | BC 12 | BC 16 | BC 20 |
| Nominální kapacita | kg/h | 8.000 | 10.000 | 12.000 | 16.000 | 20.000 |
| Steam consumption | max. kg/h | 1.400 | 1.700 | 2.000 | 2.600 | 3.250 |
| Water consumption | max. m3/h | 0 - 4 | 0 - 4,5 | 0 - 5 | 0 - 6 | 0 - 7 |
| Nominal power | kW | 26 | 33 | 39 | 48 | 60 |
Aplikace
All kinds of vegetables, excl. leafy products, e.g. spinach
