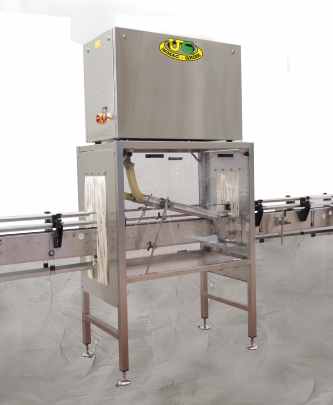

Drying tunnel UG06

Detailní popis

The drying tunnel UG06 consists of:

• Stainless steel structure with adjustable supports to the floor
• Transparent, removable panels on both sides of the structure
• Drop-collecting pan in stainless steel with terminal discharge
• Conveyor belt supports with fixing brackets
• Support for the blowing unit with separator in the blowing area
• Spray protecting covers at infeed and outfeed
• Blowing unit, equipped with filter
• Adjustable and orientable air blades in aluminum, with supports to be fixed to the conveyor
• Flexible connection pipes between the blowing units and the air blades
• Electric control panel with frequency converter

Capacity: Max. speed. 28.000cph with H.110mm containers

Technická data

depending on number of air blades

Aplikace

Designed to dry capped containers, coming from the filling or pasteurizing area, before final packaging.
