FAM Centris 400

Detailní popis

Machine description:

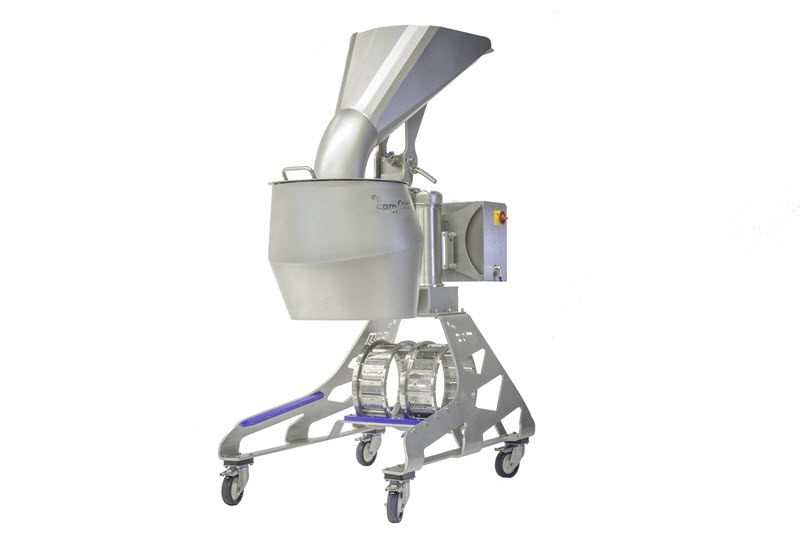

FAM has developed the innovative Centris™ 400, a new high capacity centrifugal slicer & shredder with a high-quality execution at an attractive price. It is particularly designed for companies looking for perfect cut quality, long shelf-life, flexibility, speed and capacity.

The patent pending cutting head technology (*) guarantees a consistent slice and shred thickness throughout the slicing process. Its unique design considerably facilitates the changing of blades, handling and cleaning. All these innovations are part of the groundbreaking NECST™ concept - which stands for Next Evolution in Centrifugal Slicing Technology - developed by FAM and Stumabo.

The Centris™ 400 offers a very economical operating cost. It is quick and easy in use and is equipped with a new, reliable and low-maintenance Direct Drive System.

(*) patent pending impeller and patent pending cutting head assembly

Capacity: up to 2.000 kg per hour depending on product, cut size and condition

Max. product diameter: 95 x 130 mm

Main features:

• FAM Centris™ 400 is the new reference for great cut quality in different shapes and sizes
• The lightweight stainless steel cutting head (patent pending) radically improves centrifugal slicing and shredding
• The Centris™ 400 is available as a stand-alone machine and can also be easily integrated in a production line
• Food and operator safety is a priority for the FAM Centris™ 400
• The Centris™ 400 is easy in maintenance and use, resulting in a very economic operating cost
• No gearbox but a reliable and low-maintenance direct drive system that creates a totally new and better situation
• The innovative NECST™ concept (Next Evolution in Centrifugal Slicing Technology) provides new answers to the key issues in the centrifugal slicing food processing

Cutting principles:

The product is fed through the infeed chute and enters into cutting compartments of the rotating impeller (*). There, it is held against the inner surface of the cutting head assembly (*) by centrifugal force.

The cutting head assembly (*) consists of 16 individual stationary cutting stations. Slices or shreds are produced as product passes each knife in a smooth and uninterrupted manner. Length is controlled by the input product size. The cut product is collected through the central discharge.

The interchangeable cutting heads (*) offer flexibility in all cuts and shapes, such as flat, crinkle cut and V-shaped slices as well as V-shaped, oval, julienne and wide ribbon-cut strips, and this on a variety of products.

(*) patent pending impeller and patent pending cutting head assembly

Cut shapes: Flat cut, crinkle cut, V-cut slices, V-cut shreds, julienne shreds and oval cut shreds

Cut sizes:

• Slices from 0.8 mm up to 5 mm
• V-cut shreds 318V (1.6 mm), 432V (2.5 mm), 538V (3.2 mm)
• Julienne shreds 2.4 mm, 4.8 mm, 9.6 mm, 19.05 mm

Technická data

Aplikace

Various kinds of fruit and vegetable suitable for slicing or shredding.
