FAM Dorphy

Detailní popis

Machine description:

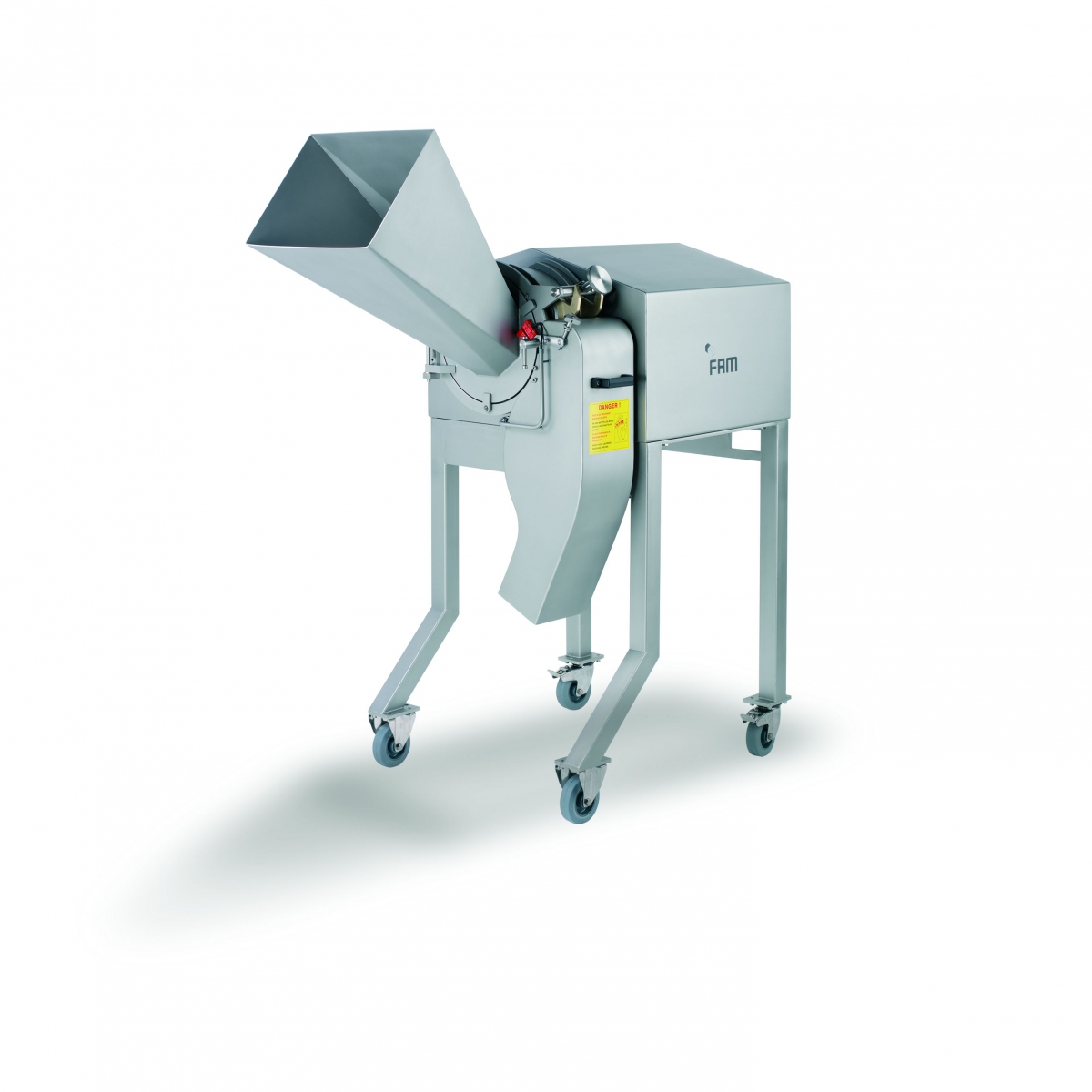

The FAM Dorphy is the answer to your small dicer needs providing a cost-effective solution for perfect cutting quality.

It combines the robustness and reliability of a heavy-duty dicer with the flexibility and compact design of a small machine. It is capable of an extreme dice size range from 3 to 20 mm and an extensive product range.

The FAM Dorphy is successful in cutting both a variety of different vegetables such as potatoes, beets, carrots, onions and peppers plus fruits such as apples, pears, strawberries, mango and papaya with a high percentage of useable product and low waste.

This versatile dicer is especially designed for start-up projects, small to medium capacity food processors, caterers, and is used in pilot plants and R&D centers. Also larger food processors use the flexibility of this dicer for specialty products and lower volume applications.

Capacity: Depending on the product application and cut size between 300 and 1.500 kg/hour

Max. product diameter: 135 mm

Main features:

• Increase your floor space with the compact FAM Dorphy dicer
• Fast and efficient feeding. It's the speed that you need
• Perfect and consistent quality of cut, eliminating human failures
• Quick change of cutting tools provides real flexibility
• Easy and quick cleaning saving valuable time while maintaining superior hygiene
• One machine for all of your products
• Manual feeding is easy from a crate or basket. The machine can be integrated in a production line with a conveyor to feed the product

Cutting principles:

A wide variety of cutting spindle assemblies make slicing, strip cutting and dicing possible with only one machine.

First a slicing knife produces slices at the selected thickness. Next, the circular knife spindle cuts the slices into strips. Finally, the crosscut knife spindle cuts neat dices to the desired height.

The combination of three cutting tools allows a very high flexibility in the choice of cutting sizes and shapes. It is even possible to produce certain cuts by removing either knife spindle.

Cut shapes: Flat cut dices, strips, slices

Cut sizes:

• Slices: from 4 up to 20 mm
• Strips: from 3 up to 25 mm
• Dices: from 3 up to 20 mm

Technická data

Aplikace

Vegetables, fruits, potatoes
