Machine description:

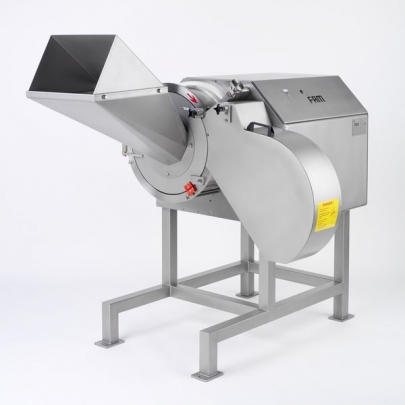

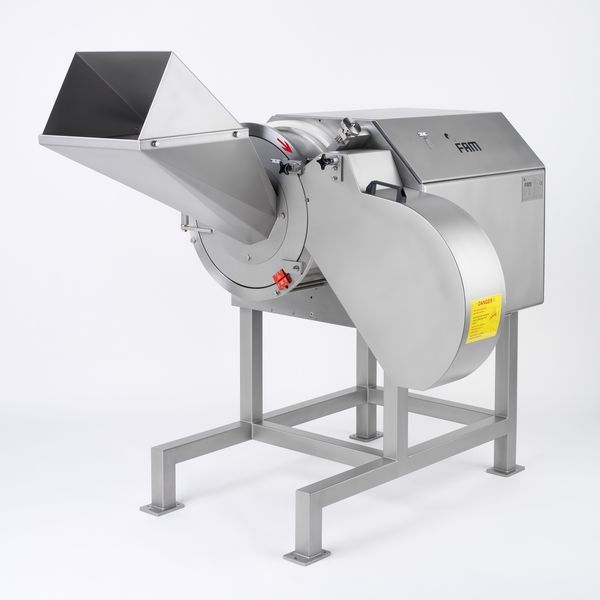

The FAM Flexifam is a medium-sized high capacity dicer designed for slicing, strip cutting and dicing a wide variety of vegetables, fruits, cooked meats and cheeses.

The key to the FAM Flexifam is its versatility. Thanks to a unique system for the easy change-over of the cutting spindles, food processors can flexibly switch between a variety of products and cut sizes, with a minimum of waste. The standard execution with 1.5 kW drive delivers excellent results on soft, tough or fibrous products. The 5.5 kW execution offers more power and higher capacities: the ideal solution for meat and cheese applications.

Capacity: Capacities between 1.000 kg and 4.500 kg per hour can be obtained, depending on slice thickness, specific weight of the product and method of feeding.

Max. product diameter: 135 mm

Main features:

• Great flexibility and ease of operation, no special technical skills are required
• Highly effective quick release system on the spindles
• The cutting tools do not require any further adjustment while installing
• The three dimensional cutting operation results perfectly in an unmatched product uniformity
• Food processors can flexibly switch between a variety of products and cut sizes, with a minimum of waste

Cutting principles:

The products entering the FAM Flexifam are cut in three dimensions by very sharp knives.
The product is first cut in slices to the thickness selected by the hand knob.
The second cut is made by the fast rotating circular knives cutting it into strips.
The strips produced by the circular knives then fed directly into the crosscut knife spindle producing the third and final cut producing cubes or rectangular pieces.

Cut shapes: slices,strips and dices

Cut sizes:

• Slices from 1,5 to 15mm
• Strips from 3 to 24 mm
• Dices from 3 to 40 mm

Technická data

Aplikace

Vegetable, fruit, cooked meat and cheese
