Machine description:

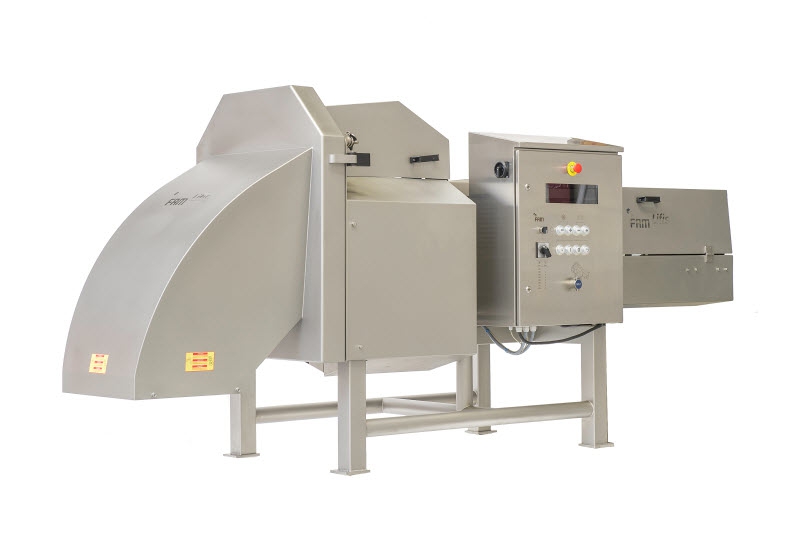

The FAM Lifis.2 is the newest generation of the high performing transversal V-belt slicer. This slicer is used for the perfect cutting of leafy vegetables, in particular all types of lettuce, elongated vegetables such as rhubarb, leek or celery and firm round vegetables like cabbage heads.

Its large product opening guarantees a free and smooth passage of the product towards the cutting wheel offering maximum capacity. The machine easily handles products up to 180 mm in diameter in case of ­firm products such as iceberg and cabbage heads (220 mm in case of leafy products).

Next to the remarkable cutting quality, FAM Lifis.2 provides an even higher efficiency in cleaning and maintenance, speed in adapting cutting sizes and an attractive cost of ownership.

• The electrical cabinet has 8 presettings for the speed of the belts and the cutting wheel, but it can also be programmed manually.
• The unique quick release system for the V-belts reduces the downtime for cleaning and replacing the belts to its minimum.
• The cutting principle allows the product to be sliced without being crunched by any hold down belt. Especially onto fragile leafy products such as lettuce and iceberg, the cut products display an exceptional shelf life.
• Variable frequency drives for both the slicing wheel and the conveyor belts offer a precise speed control and maximum flexibility producing different cutting sizes.
• An angled bottom plate evacuates water and waste to a central drain. This feature allows a more effective and quicker cleaning.
• Easy accessible and wash-down stainless steel motors (without cooling fins and fan) offer an even better cleanability.
• A specially designed discharge chute gently decelerates the cut product minimizing product damage.
• The trapped safety key can only be removed from the control cabinet after all rotary parts have come to a complete stop.

Capacity: Up to 9.000 kg/h, depending on product, cutting size and condition

Max. product diameter: 180 mm for hard products (whole or pre-cut) and up to approx. 220 mm for leafy vegetables (compressible).

Main features:

• The FAM Lifis.2 delivers a very competitive cost of ownership
• Extremely reliable performer for a very demanding high capacity market
• Operator-friendly to program and flexible in many different applications
• Fully focused on superior sanitation and high machine safety
• Highly efficient machine design resulting in low maintenance and easy accessibility

Cutting principles:

The product slides onto 2 conveyor belts positioned in the V-shaped feed channel ensuring automatic positioning and high-speed transport of the product to the cutting wheel.

The thin and tensioned knives of the cutting wheel act as spokes and support the rim. The thin knives are twisted in order to make a uniform pitch from the hub to the rim. It is this pitch that maintains the continuous speed of the product while it is being sliced resulting in maximum slice thickness accuracy. The conveyor belt speed is synchronized with the cutting wheel speed to ensure proper advance of the product per revolution of the cutting wheel.

In addition the FAM Lifis.2 can cut your leafy vegetables in small squares by positioning small 2D-knives transversely on the cutting wheel.

Cut shapes: Flat cut slices, shreds and stamps (rectangular slices)

Cut sizes: Various cut sizes possible from 2mm up to 38mm for firm products and up to 80mm for leafy vegetables

Technická data

Aplikace

Various types of lettuce, spinach, zucchini, eggplant, leek, celery, carrots, onion and various cabbage types, cucumber, green beans and bell peppers
