FAM Tridis 240

Detailní popis

Machine description:

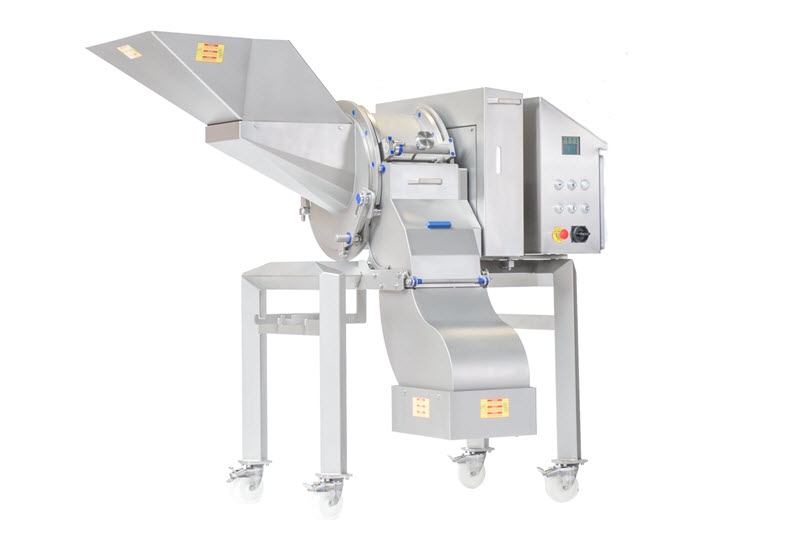

The FAM Tridis™ 240 is a tridimensional dicer, designed for the very demanding frozen vegetable & fruit and French fry industry. Compared to other available cutting machines, the FAM Tridis 240 increases capacity by 10% to 40%. Perfecting the product flow has led to an excellent cut quality and yield, with less slivers and fines.

In close consultation with leading companies in the industry, the maintenance of the FAM Tridis 240 is completely optimized, including an easy cartridge system to replace the spindle bearings.

Perfect performance is made easy for operators by keeping the design of the FAM Tridis 240 simple and clear, for example, the Set & Forget™ technology for the circular knife spindle and the slicing guide makes fine-tuning the cutting tools an easy job.

Capacity: 1.500 kg/hr/mm depending on the product and cut size

Max. product diameter: 225 mm diameter, 280 mm depth

Main features:

• Optimal product transit, with high passage speed, minimum path length and no obstructions, leads to ultimate cut quality
• Compared to other available cutting machines, the FAM Tridis 240
• Maintenance time reduced drastically by smart design and efficient auxiliary tools
• Improved hygiene through maximum accessibility and sanitary design
• Cutting tools can easily be replaced and adjusted thanks to a number of important Set & Forget™ features. Simplicity above all.
• The FAM Tridis 240 is a smart choice in terms of sanitation. The machine has no hidden corners or visible wires and the frame is open with only slant surfaces.
• The FAM Tridis 240 has sealed bearings that are lifetime greased. This eliminates over or under lubrication. For specific applications the FAM Tridis 240 is also available with grease points (Crinkle fries and Frozen).

A wide variety of cutting tools make slicing, strip cutting and dicing possible with only one machine. First a slicing knife produces slices at the selected thickness. Next, the circular knife spindle cuts the slices into strips. Finally, the crosscut knife spindle cuts neat dices to the desired height.

The combination of three cutting tools allows a very high flexibility in the choice of cut sizes and shapes.

Cut shapes: Flat cut and crinkle cut dices, strips, slices

Cut sizes:

• Flat slices: 1.6 - 25 mm, crinkle slices: up to 25 mm.
• Strip cuttting: circular knife cuts: 3 - 80 mm
• Dices: flat cut: 3 - 64 mm, crinkle cut: 7.1 - 16 mm

Technická data

Aplikace

Vegetable and fruits, potatoes
