FAM TS-1D

Detailní popis

Machine description:

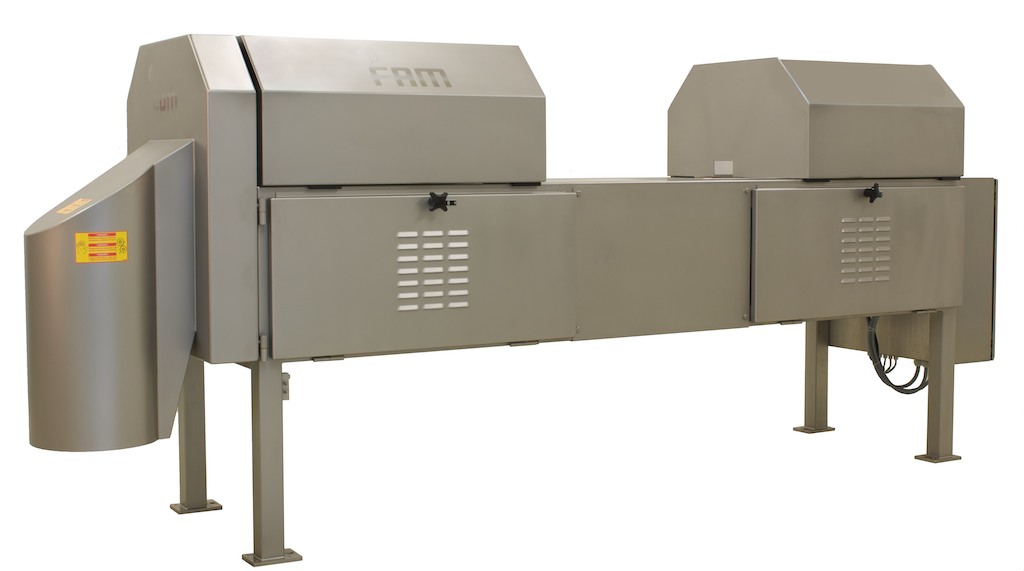

The FAM TS-1D Transverse Slicer is designed for precise cutting of elongated and oblong products such as cucumbers, carrots ... The 90 mm wide in-feed channel perfectly aligns long, slender products towards the slicing wheel. For compressible leafy products, such as lettuce and large peppers, a special version with a wider in-feed channel is available that accepts products with a diameter up to 115 mm. The FAM TS-1D also successfully slices certain seafood (squid) and meat products (sausages, chicken, …).

A more compact version of the FAM TS-1D version is available for production facilities or production lines that have limited space. This version is almost 1 meter shorter.

Capacity: Depending on the product application and cut size between 500 and 6000 kg/hour

Max. product diameter: 90 mm for hard products, 115 mm for compressible products

Main features:

• Driven or loose top belts available for perfect product enclosure and guiding
• The slightly twisted knives of the cutting wheel guarantee a perfect cutting result
• An optional frequency drive sets the speed of the conveyor belts as well as the speed of the cutting wheel
• Many cut shapes possible on a wide range of products
• Optional circular knife can divide the product to be cut in halves prior to slicing
• Optional spear cutter for segments and spear can replace the slicing wheel
• Hinged discharge chute and easily removable covers give access to the product zone and the drive zone
• The cutting machine can function without operator: with ideal feeding, full automatic, or feeding by shaker, conveyor belt
• Drive zone and product zone of the machine are completely separated.
• Bottom catch pan available for evacuation of waste and water to a central point.
• Safety switches prevent the FAM TS-1D from operating while one of its covers or doors is still open.

Cutting principles:

A driven V-shaped conveyor belt guides the product towards the cutting wheel. The thin and tensioned knives of the cutting wheel act as spokes and support the rim. The cutting wheel spins at high speed and the thin razor-sharp knives guarantee a perfect cut. Additionally, the product cell structure remains protected, increasing the product shelf life considerably.

The cutting size of your product is determined by the combination of:

• the type and speed of the cutting wheel;
• the number of knives on the cutting wheel;
• the speed of the conveyor belt.

Small 2D-knives, positioned transversally on the cutting wheel, cut your leafy vegetables in small squares. To produce half-moon cut slices, a circular knife can divide the product in halves prior to slicing. A spear cutter can cut the product in quarters.

Cut shapes: Flat cut, crinkle cut, julienne slices, halved slices

Cut sizes: Various cut sizes possible from 1,6 m up to 40 mm

Technická data

Aplikace

Fruit and vegetables, meat and poultry, potatoes, fish and seafood, other
