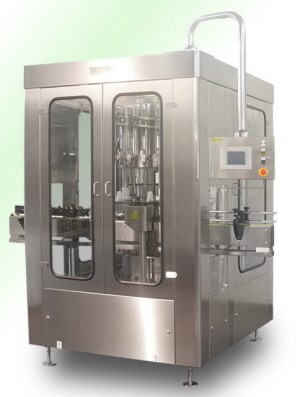

Rotary piston filler

Detailní popis

Machine description:

The machine consists of:

• Stainless steel structure, easy cleaning, adjustable height
• Product hopper with two-or three-way pneumatic valve, controlled by level probes
• Bottom-up filling version available for foamy products
• No-can no-fill device
• Automatic container stop at infeed in case of failure; machine stop in case of jam at outfeed
• Safety guards complying with CE regulations
• Motorized conveyor belt with gear motor controlled by variable frequency drive
• Machine equipped to handle one container size
• Rotary models with carrousels featuring 6 to 40 cylinders, with nozzles preventing product spillage
• Parts in contact with products made of AISI 316 stainless steel or other material suitable for the food industry

Capacity: 32.000 pcs/ h for homogenous product, size of containers 250gr 40 filling cylinders

Advantages:

• Utmost cleaning and sanitation
• Easily inspectable and user-friendly
• High precision and flexibility

Options:

• Kit for heated or insulated hopper
• Automatic cleaning cycle
• Fixed or motorized product stirrer in the hopper

Technická data

This technical sheet gives an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.

Aplikace

Jams, tomato paste, ketchup, sauces with meat or vegetables, baby food, paté, marmalades.
