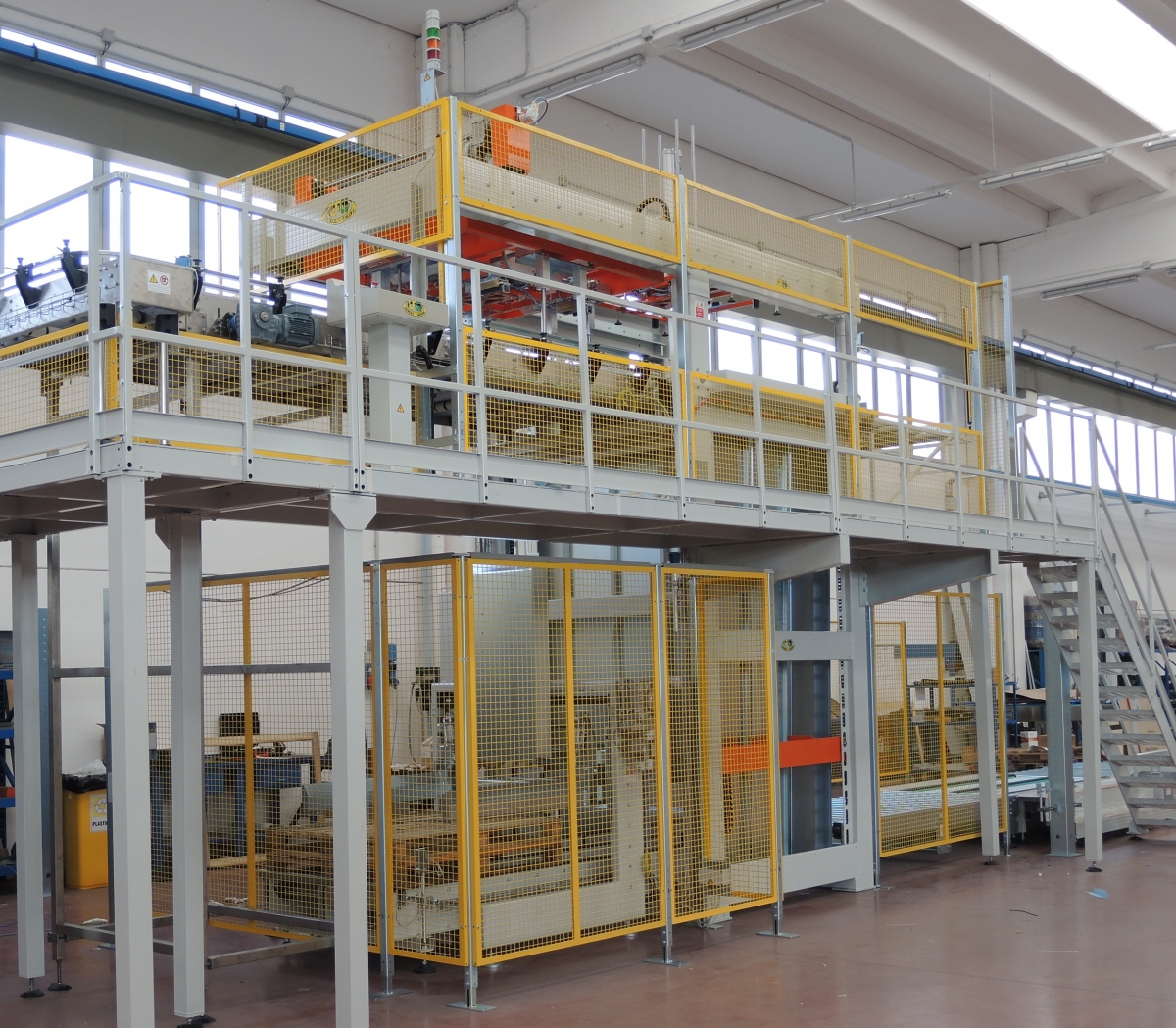

Depalletizer UNI 550

Detailní popis

The machine is consisting of:

• Four-column structure for full pallet lifting
• Layer pusher featuring motorized bar
• 2 layer-pad grip unit with pneumatic motion
• Layer-discharge conveyor with mesh belt in plastic material
• One full pallet central conveyor featuring 3 motorized chains
• Operator platform in painted metal
• Perimetric safety fences
• Electric installation as per CE regulations

Capacity: 5 layers/ min

Operation:

The operator places the pallet at the machine infeed and manually removes the protective film. Then he/she presses the confirmation button. The pallet is automatically transferred into the machine lifted. The layer is automatically pushed to the discharge conveyor by a motorized bar or box-type translator. The layer-pad is removed manually by the operator or, as an option, by an automatic layer-pad removing system. At outfeed the depalletized containers are aligned in a single row by an aligner, supplied as a option.

Options:

• Automatic pallet magazine
• Automatic layer-pad remover
• Container aligner at machine outfeed
• Pallet unwrapping station

Technická data

These technical parameters give an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.

Aplikace

Cans, bottles and glass jars
