Depalletizer UNI 701
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis

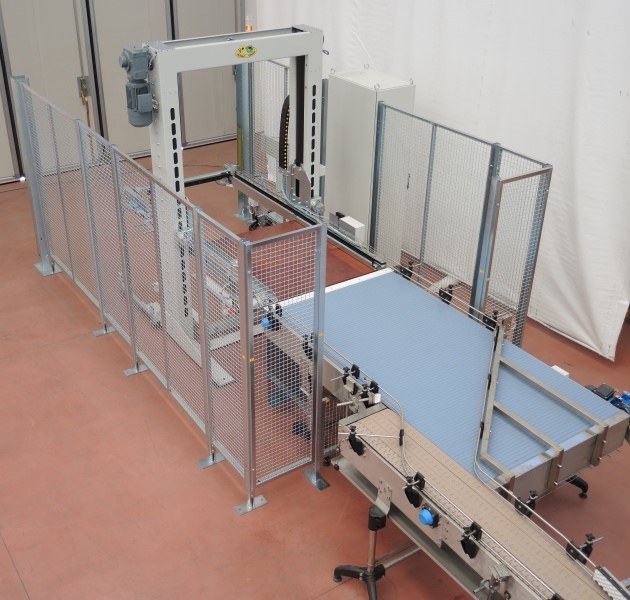

Machine description:
Semiautomatic depalletizer for bottles and jars with low-level outfeed and pallet on the floor, consisting of:
- Double-column structure for layer loading/unloading platform lifting
- Safety block (parachute) with pneumatic activation
- Discharge platform with plane made of Lignostone and layer-holding fixed guides
- Two layer-pad pincers units with pneumatic activation
- Layer-pushing bar
- Pneumatic guides for layer side holding
- Perimetric safety guards complying with CE regulations
- Control system with mini PLC.
Capacity: 2 layers/ minute
Option:
- Photoelectric barrier
- Retracting guide
- Front holding guide for unstable containers
- Discharge accumulation table
- Container aligner at discharge
Technická data
| Pallet dimension | 800x1 200 – 1 000x1 200 mm |
| Max. pallet height | 1.800 mm |
These technical parameters give an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
Aplikace
Jars and bottels
