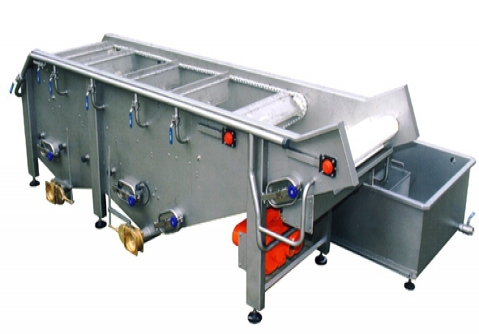

Fruit washer FW 100

Detailní popis

Operating principle:

The fruit washer FW-100 is made for cleaning and sanitizing of fruit. All fruit with either positive or negative buoyancy can be processed. The product is assisted through the washer by the water stream in combination with the variable speed compartmental paddle system. This system is driven through two plastic chains mounted along the side of the washer with connecting spaced transverse paddles. The dwell time can be adjusted between 1.5 and 5 minutes. The paddles can also be demounted for a free un-interrupted flow.

The modular conveyor belt mounted above the bottom of the tank allows the negative buoyancy products a controlled transportation through the washer up to the discharge elevator. To assist the standard washing action there is a special air agitation system which intensifies the washing/cleaning result. The water is collected in a separate tank with pump and sieve, prior to the circulation.

Capacity: The capacity is dependent on the type of product, the dimensions and the desired dwell time.

Scope of supply:

• Washer with paddles, bottom conveyor, outfeed belt and air system
• Water reservoir re-circulation with pump and filter screen
• Control panel

Features:

• Multi-functional
• Intensive cleaning and sanitizing action
• Hygienic construction
• Simple operation

Options:

• Alternative dwell times
• Individual design format

Technická data

Aplikace

Floating and sinking products i.e. apples, peaches, plums, melons etc. up to a maximum diameter of 250 mm.
