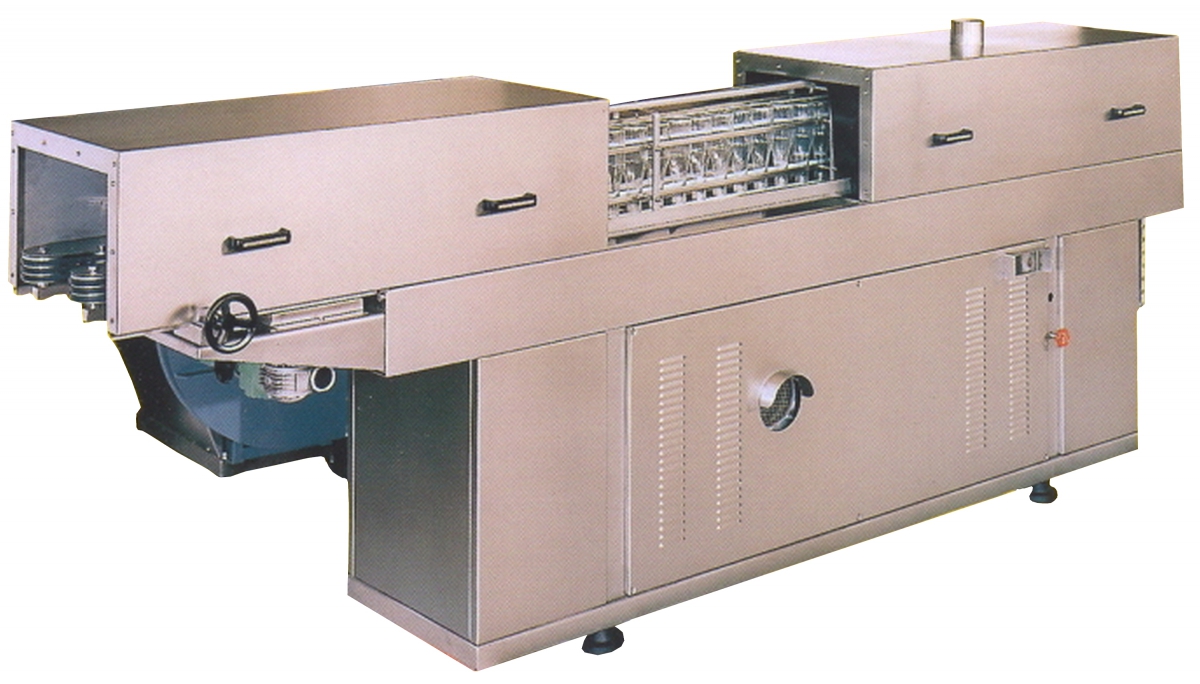

Cleaning machine GG20
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
Designed to easily and efficiently solve the problems of inner cleaning and pre-heating of glass containers before filling. Equipped to handle one container size.
Featuring of five sections:
- Container feeding by pushing system
- 180°container overturning
- Air blowing by electro fan with filter
- Pre-heating with steam injection
- 180°container overturning and discharge
Capacity: Max. speed 6.000 cph with 500cc containers
Technická data
| Installed power of Variator | 0,55 kW |
| Installed power of fan | 4 kW |
| Saturated steam consumption | 50 kg/ hour at 2 – 4 bar |
| Overall dimensions (L x W x H) | 4.000 x 800 x 1.500 mm |
| Weight | 530 kg |
This technical sheet gives an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
.
Aplikace
Stiff containers with round, square or octogonal shape, with min. 30mm opening.
