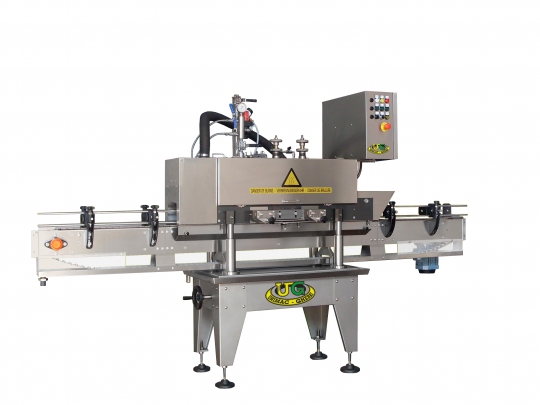

Linear capping machine GG100
The automatic linear capping machine GG100, manufactured in stainless steel, can close jars and/or bottles with metal caps type: Regular, Medium, Deep Twist-Off, Pry-Twist, Pry-Off. The capping machine is supplied with cap feeder to be installed directly on the machine or on the floor depending on production output required.
Charakteristika
Detailní popis
Machine description:
Capping operation executed in a saturated steam chamber with high vacuum in the container. And with constant vacuum value. Equipped with the suitable optional sets of change parts,
The basic machine is composed of:
- Lower structure made of stainless steel
- Stainless steel collection tank under the working area
- Upper head made of stainless steel
- Stainless steel telescopic columns with height adjustment
- Cap chute with preheating by steam
- Cap slip-off unit
- Stainless steel steam distribution unit
- Motorized screwing unit and cap closing by screwing and/or pressure belts
- Cap lack sensor to stop the machine, programmable from 1 to 10
- Belt lubrication unit
- Brackets unit for container tightening and centering
- 3.500mm-long stainless steel conveyor belt. Direct transfer at infeed and outfeed with contact between the chains. Motorized by gear motor controlled by frequency converter
- Doors closing with safety micro switches
- Stainless steel electric control cabinet with low-voltage controls and PLC.
Capacity: max. speed 12.000 cph with RTO Ø 38mm cap size
Advantages:
- Stainless steel construction
- High hygiene and sanitation
- Easy adjustment to different sizes with no need of special change parts, even with the machine in production
- Constant screwing strength in any working conditions
- Quick format change-over
- High resistance to corrosion
- Easy cleaning and maintenance.
Options:
- Motorized height adjustment
- Centralized bracket units adjustment by hand wheel
- Steam exhauster kit
- Kit for jars lower than 50 mm (extra low brackets);
- Extension of the belt conveyor (1000mm max.)
- Steam kit with super-heater
- Over accumulation photocell at outfeed
- Counter of total pieces produced and total hours worked
Technická data
| Motorization | 1,5 kW |
| Steam consumption | 70 kg/hour. at 3 bar |
| Air consumption | 5Nl/1‘‘ at machine start – 6 bar |
| Water consumption | 12 l/hour. at 2 bar 5 – 15°C |
| Overall dimensions | 3.500 x 1.000 x H 2.400mm |
| Weight | 520 kg (without feeder) |
This technical sheet gives an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
Aplikace
| caps | diameter from 27 to 110 mm |
|
height from 5 to 19 mm |
|
| containers | diameter from 30 to 160 mm |
| height from 50 to 260 mm |
