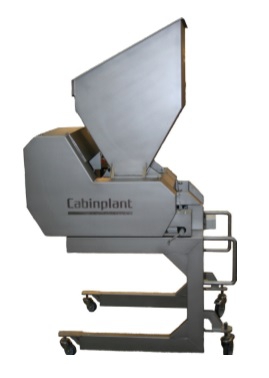

Crusher
The Cabinplant crusher is designed for separating frozen products in a fast, continuous and gentle way.
Charakteristika
kapacita
up to 4 m3/min. or 10 m3/min. (depending on type)
aplikace
The crusher is designed for separating lumps of frozen vegetables, meat, seafood, etc.
Výrobce stroje
Cabinplant A/S
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Roesbjergvej 9
DK-5683 Haarby
Denmark
tel.:+45 40752276
PGR@cabinplant.com
www.cabinplant.com
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
The crusher consists of a construction incorporating 2 drums with spikes pulled by a gear motor. The drums rotate against each other to pull the product through. The distance between the rollers can be adjusted electrically or manually. The machine is made of stainless steel with all welded structural components. Inlet hopper is designed according to agreement.
Capacity: up to 4 m3/min. for CP-400 or 10 m3/min. for CP-900.
Main features:
- Short throughput time
- Low energy consumption
- Large capacity
- Easy to clean
- Minimum maintenance
- Production at low temperature down to -50°C
- Completely in stainless steel
Option:
- Electrical adjustment of the crushing drums
Technická data
| Type | CP-400 | CP-900 |
| Inlet dimensions | 200 x 400 mm | 200 x 900 mm |
| Max. capacity | 4 m3 | 10 m3 |
| Length (L) | 850 mm | 1.350 mm |
| Width (W) | 1.000 mm | 1.000 mm |
| Height (H) | 616 mm | 616 mm |
Aplikace
The crusher is designed for separating lumps of frozen vegetables, meat, seafood, etc.
Poptávkový formulář
Fotogalerie
