Magnetic palletizer and depalletizer UNI 400 – UNI 450
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
Automatic magnetic palletizer and depalletizer UNI 400 – UNI 450 consists of:
- Layer transfer central structure made of painted carbon steel featuring vertical and horizontal motions

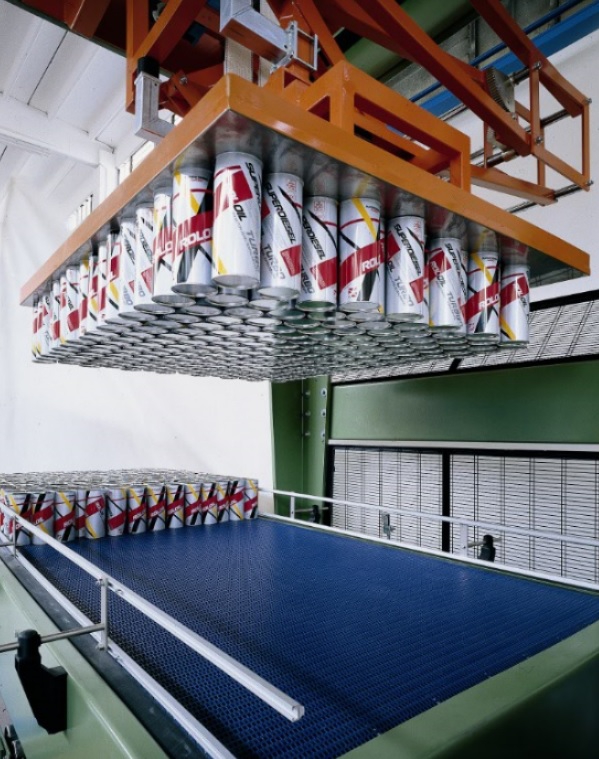

- Pick-up head with permanent magnets and stainless steel separation sheeting
- Motorized Intralox-type mesh conveyor
- Pallet conveyors featuring motorized rollers
- Perimetric safety fences complying with CE regulations
- Electric installation complying with CE regulation
Capacity: up to 2, 2 layers per minute
Options:
- Automatic pallet magazine
- Automatic layer-pad pick-up and placement system
- Layer-pad magazine
- Container aligner (at depalletizer discharge)
Technická data
| Max layer weight | max. 300 kg |
| Pallet dimensions | min. 800x1.200mm, max. 1.000x1.200mm |
| Max pallet height |
1.750mm (standard) |
| Installed power | 8 kW (basic machine) |
| Air consumption | 200NI/1' (basic machine) |
These technical parameters give an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
Aplikace
Empty and full cans, jars and bottles with metal caps, featuring low-level loading (unloading)
