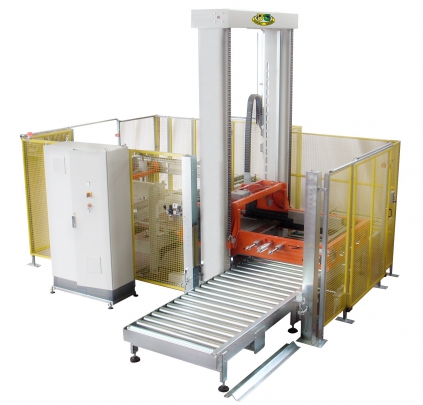

Palletiser UNI 600
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
Automatic carton and pack palletizer with low level loading consisting of:
- Double-column structure for layer loading/unloading platform lifting.
- Layer-squaring unit
- Layer translator with pushing trolley horizontally moving on rack.
- Layer translator with pushing bar lifting.
- Pack-spacing device at infeed, with double belt.
- Two pack separation units
- Perimetric safety fences as per CE regulations
- Electric installation as per CE regulations
- One palletization program
Capacity: 4 layers/minute
Option:
- Automatic pallet magazine
- Automatic layer-pad placement
- Double/triple infeed for high speed requirements
Technická data
| Max. layer weight | 350 kg |
| Pallet dimensions | 800x1.200 – 1.000x1.200 – 1.120x1.420 mm |
| Max pallet height | 2.100 mm |
| Installed power | 10 – 15 kW |
These technical parameters give an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
Aplikace
carton and packs
