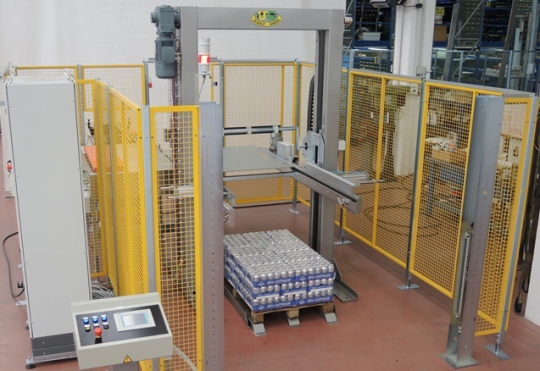

Palletiser UNI 601
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:
Palletiser for cartons with low-level loading and pallet at floor level, consisting of:
- Double-column structure for layer loading/unloading platform lifting.
- Safety block with pneumatic activation
- Loading/unloading platform with retracting plane.
- Layer back block with pneumatically operated bar
- Layer pusher with pushing guide controlled by pneumatic cylinder
- Perimetric safety guards complying with CE regulations (Class 2)
- Control system with mini PLC.
Capacity: 10/15 cartons per minute
Option: Row preformation at infeed with motorised rollers
Technická data
| Max. layer weight | 200 kg |
| Pallet dimensions | 800x1.200mm – 1.000x1.200mm |
| Max pallet height | 1.900 mm |
| Installed power | 4 kW |
These technical parameters give an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
Aplikace
glass jars, bottles and cans
