Telescopic palletizer and depalletizer UNI 400T – UNI 450T
Detailní popis Aplikace Technická data Poptávkový formulář
Detailní popis
Machine description:

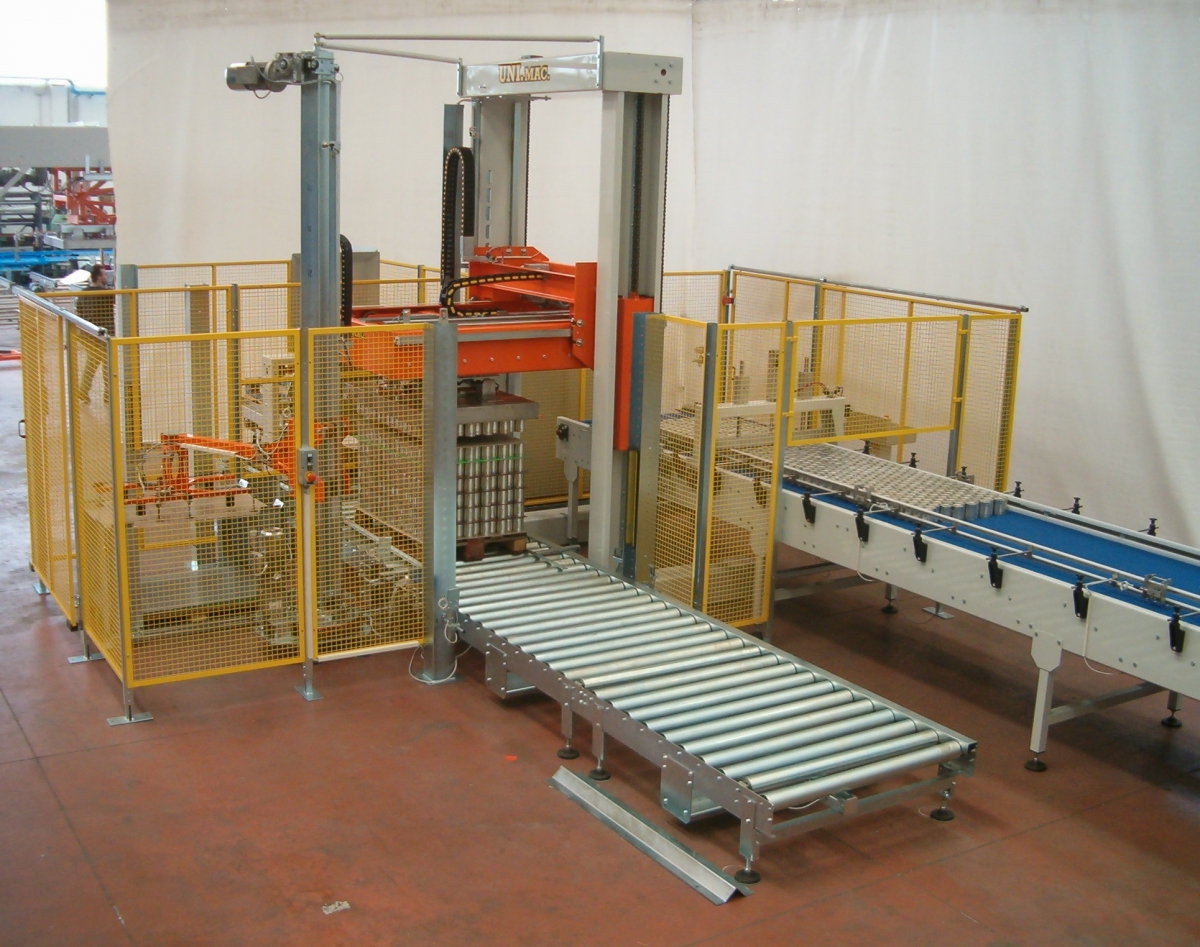

Automatic telescopic palletizer and depalletizer UNI 400T – UNI 450T consists of:
- Double-column structure for layer-loading/unloading platform lifting
- Layer translator with telescopic trolley horizontally moving by a lever
- Pick-up head with permanent magnets and stainless steel separation sheeting for cans
- Motorized Intralox-type mesh conveyor. Contact parts with containers covered with high-density polyethylene
- Conveyors with motorized rollers for pallet infeed, outfeed and in the central area
- Perimetric safety fences as per CE regulations
- Electric installation as per CE regulations
Capacity: up to 4,5 layers per minute
Options:
- Automatic pallet magazine
- Automatic layer-pad pick-up and placement system
- Layer-pad magazine
- Container aligner (at depalletizer discharge)
Technická data
| Max layer weight | max. 300 kg |
| Pallet dimensions | min. 800x1.200mm, max. 1.000x1.200mm |
| Max pallet height |
1.750mm (standard) |
| Installed power | 8 kW (basic machine) |
| Air consumption | 200NI/1' (basic machine) |
These technical parameters give an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
Aplikace
Empty and full cans, jars and bottles featuring low-level loading (unloading)
