Potato segmenting machine

Detailní popis

Operating principle:

The DMA-60 has the capability to cut the potatoes into 2, 4 or 6 pieces.

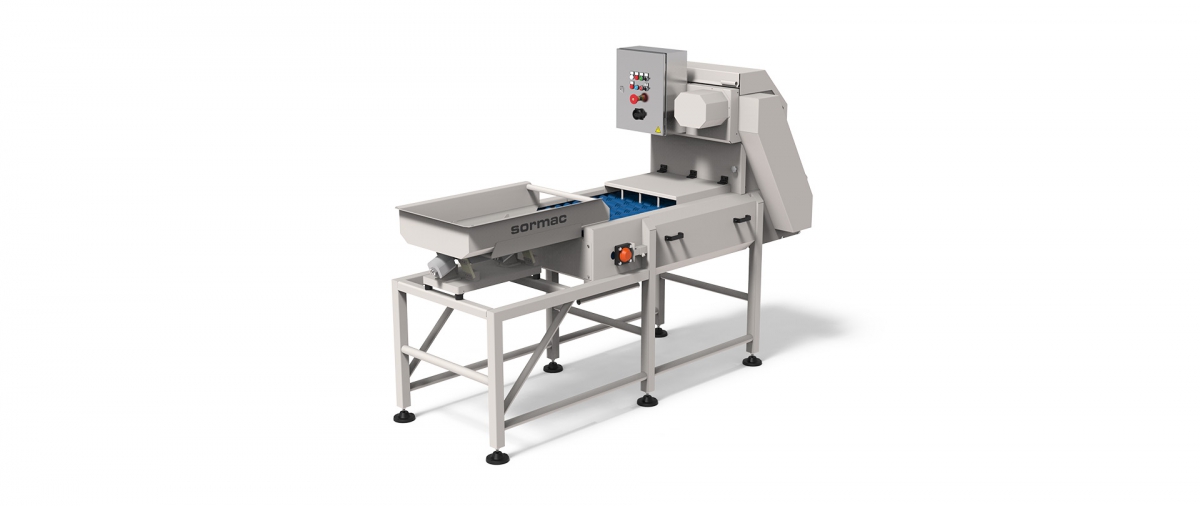

The DMA-60 is free standing and constructed in stainless steel and consists of 3 major components drive mechanism, aligning rollers and a cutting section with knife block. For equal filling of the positioning rollers with potatoes the machine is set up with a vibration chute. The machine has a frequency drive system.

The drive mechanism consists of rotating aligning rollers, which are driven from both sides of the machine. The self-aligning rollers have a diablo profile, which can facilitate 4 potatoes across the width of the roller bed. The product is transported by an indexing system, which advances 3 rows forward to the cutting section.

The knife block can (optionally) halve the product on one side of the machine and produce 4 or 6 segments on the opposite side.

The DMC-60 Sormac potato cutting machine divides potatoes into 2 pieces. On the roller bed the potatoes are lined up on to six parallel rows and transported to the cutting section. A set of 6 pieces rotating circular knives divide the potatoes in 2 pieces.

Capacity: approx. 16.000 - 20.000 potatoes/hour

Features:

• Several kind of cutting knives available (not for DMC-60)
• Long shelf life
• Easy mounting / de-mounting of the cutting knives
• Hygienic design
• Simple operation
• Durable, hard-wearing and reliable
• Ease of access

Options:

• Collection belt for small pieces underneath the machine (L= 2.230 mm)
• Collection/bypass belt underneath the machine (L= 3.500 mm)

Technická data

Aplikace

• Product specification for DMA-60: The maximum product size is 75 x 140 mm, the diameter minimal 40 mm.
• Product specification for DMC-60: The maximum product length is 90 mm, the diameter 40 – 55 mm.
