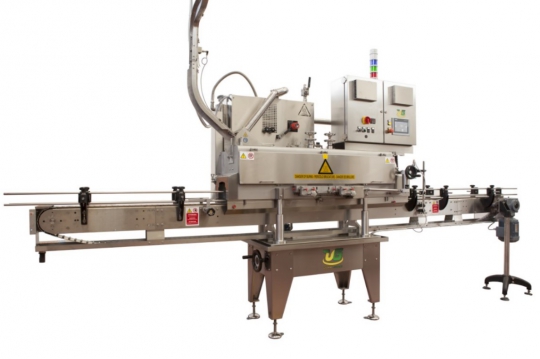

Linear capping machine GG250
The automatic linear capping machine GG250, manufactured in stainless steel, is suitable to close jars and/or bottles with metal caps type: Regular, Medium, Deep Twist-Off, Pry-Twist, Pry-Off.
The capping machine is supplied with the magnetic cap feeder at floor level GG900, which can be installed at a distance to reduce noise significantly.
Charakteristika
Detailní popis
Machine description:
Capping operation executed in a saturated steam chambre with high vacuum in the container. And with constant vacuum value. Equipped with the suitable optional sets of change parts,
The basic machine is composed of:
- Lower base-plate in stainless steel
- Stainless steel collecting tank under the working area
- Upper head in stainless steel
- Stainless steel telescopic columns with height adjustment by hand wheel
- Cap descent unit with pre-heating by steam
- Cap slip-off unit
- Steam distribution unit made of stainless steel
- Steam exhauster
- Screwing unit motorized by gear motor controlled by frequency converter for closing the cap by suitable screwing and/or pressure belts
- Missing cap sensor with programmable stop
- Belt lubrication unit
- Brackets unit for container tightening and centering
- 4000mm-long motorized conveyor belt made of stainless steel featuring 114mm stainless steel chain
- Over accumulation photocell at outfeed
- Doors closing with safety micro switches
- Stainless steel electric control cabinet with low tension controls and PLC.
Capacity: Max. speed 30.000 cph with RTO Ø 38mm cap size
Advantages:
- Stainless steel construction
- High hygiene and sanitation
- Easy adjustment to different sizes with no need of special change parts, even with the machine in production
- Constant screwing strength in any working conditions
- Quick format change-over
- High resistance to corrosion
- Easy cleaning and maintenance.
Options:
- Motorized height adjustment
- Centralized brackets adjustment
- Kit for jars with height below 50mm
- Steam super heater for products like mayonnaise and cheese
- Extension of the conveyor (1000mm max.)
- Counter of units produced and hours worked
Technická data
| Motorization | 3,25 kW |
| Steam consumption | 100 kg/hour. at 3 bar |
| Air consumption | 5 Nl/1‘‘ at machine start – 6 bar |
| Water consumption | 20 l/hour. at 2 bar 5 – 15°C |
| Overall dimensions | 4.000 x 1.000 x H 2.400mm |
| Weight | 700 kg (without feeder) |
This technical sheet gives an approximate description of the machine. The technical features and the machine configuration are to be confirmed at the time of order.
Aplikace
| caps | diameter from 27 to 110 mm |
|
height from 5 to 19 mm |
|
| containers | diameter from 30 to 160 mm |
| height from 50 to 260 mm |
